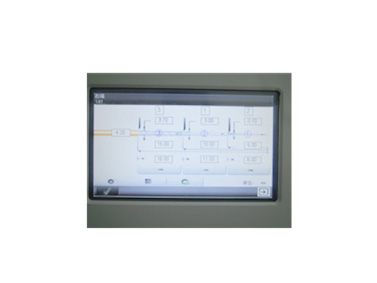

● 3D Graphical operation interface
● Diagnostics features
● One programming for two sides processing
● Barcode scanning function (option)
● Various user levels
● Air jet (option)

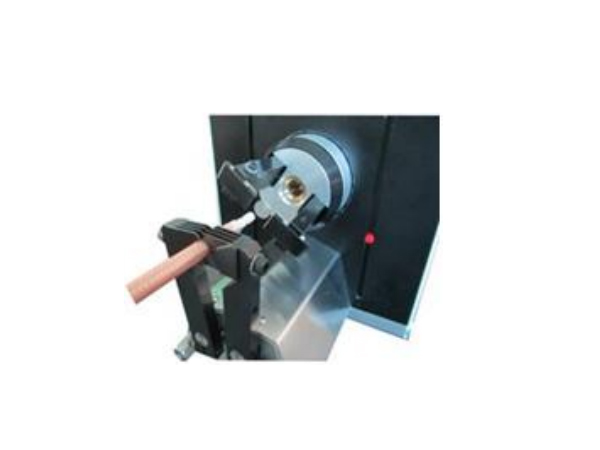

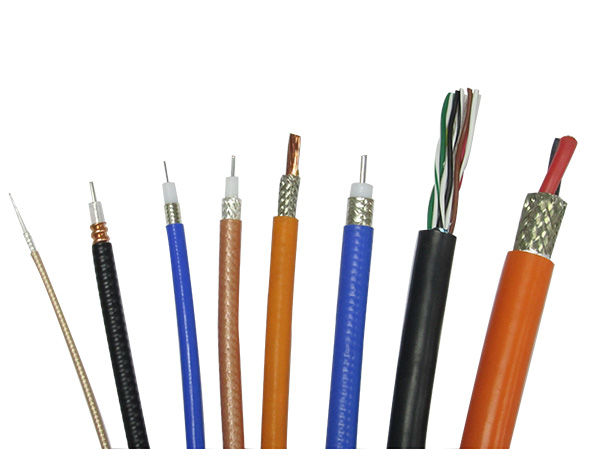

Production proven mechnics,combined with state-of-the artelectronics and a 3D Graphical operation interface an easy to use platform which offers maximum efficiency.The Coaxial Cable stripping machine CS-1250 can easily process coaxial and triaxial cables with a maximum outside diameter of 12mm (0.47").short cycle times and the ability to store up to 500 programs in memory ensure high profitability and quick return
Programmable settings for each step of each program
● Stripping position
● Stripping diameter
● Feed rate of the stripping blades
● Rotational speed of the stripping head
● Spindle direction of the stripping head
● Extra spin time of the stripping head
● Wayback (opens blades slightly before pulling off)
● Stripping lengths (partial strip or full strip)
● Pull-off speed
● Pull-off with or without rotation of the stripping head
● Freely selectable stripping sequence
● Cable clamping force
Max.Cable Diameter
12 mm
Diameter Increments
0.01 mm
Max. Stripping Length
50 mm
Stripping Length Increments
0.01 mm
Max. Stripping Steps
9
Cycle Time
≥4.5s(depending upon cable type and programming)
Production Rate
550~600Pcs./hour (depending upon cable type and programming)
Stripping Blades
2
Program Capacity
500 cables with 9 steps
Operating Mode
Trigger/Footpedal
Power Supply
110-220 VAC ,+/- 10%, 50-60 Hz; 550VA
Noise
<75dBA
Dimensions（LxWxH)
644x186x287 mm
Weight
20Kg
Important Notice
Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
