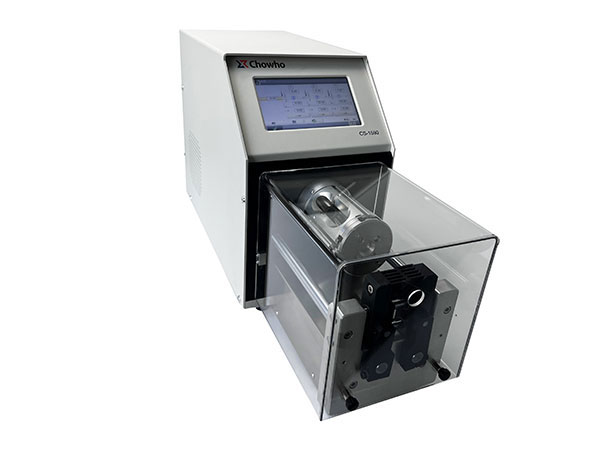

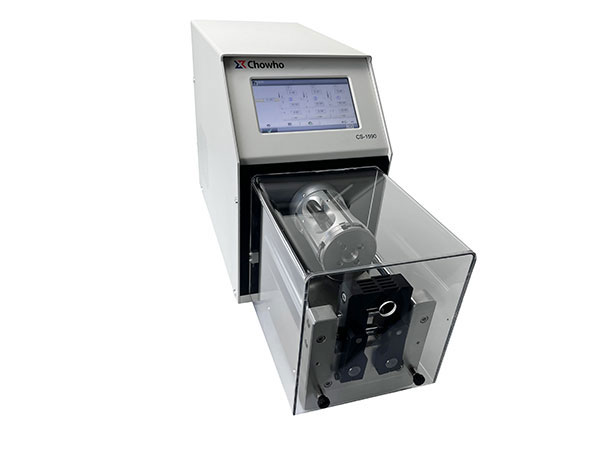

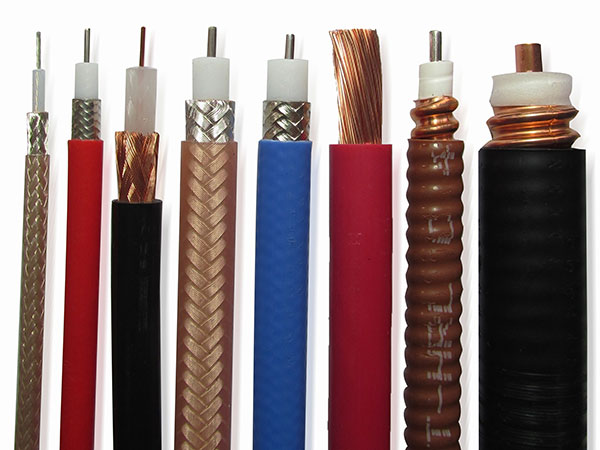

Production proven mechnics,combined with state-of-the art electronics and a 3D Graphical operation interface an easy to use platform which offers maximum efficency.The Coaxial Cable stripping machine CS-1590 can easily process coaxial and traxial cables with a maximum outside diameter of 15mm(0.59").Due to the unique 4 blade concept the machine is able to strip thin, tough and slightly out of round insulations. With a sample programming library and 500 program memory, this machine is ideal for low volume,quick changeover applications as well as high volume production runs, giving the best possible flexibility and productivity to your production methods.
Programmable settings for each step of each program
● Stripping position
● Stripping diameter
● Feed rate of the stripping blades
● Rotational speed of the stripping head
● Spindle direction of the stripping head
● Extra spin time of the stripping head
● Wayback (opens blades slightly before pulling off)
● Stripping lengths (partial strip or full strip)
● Pull-off speed
● Pull-off with or without rotation of the stripping head
● Freely selectable stripping sequence
● Cable clamping force
