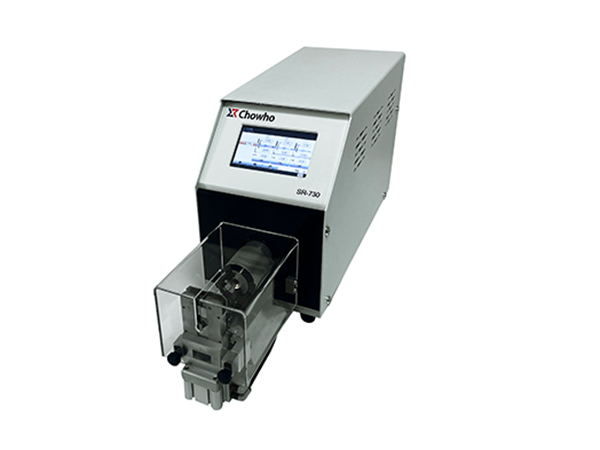

Stripping Machine for Semi-Rigid Coaxial Cables SR-730
Detail
Application Area/Concept
Function
Technical Specifications
PDF document
● 3D Graphical operation interface
● Diagnostics features
● One programming for two sides processing
● Barcode scanning function（option)
● Various user levels
Production proven mechnics,combined with state-of-the artelectronics and a 3D Graphical operation interface an easy to use platform which offers maximum efficiency.The Stripping Machine for Semi-Rigid Coaxial Cables SR-730 can easily process coaxial and Semi-Rigid Coaxial Cables with a maximum outside diameter of 7mm(0.28").short cycle times and the ability to store up to 500 programs in memory ensure high profitability and quick return on investment.
Programmable settings for each step of each program
● Stripping position
● Stripping diameter
● Feed rate of the stripping blades
● Rotational speed of the stripping head
● Spindle direction of the stripping head
● Extra spin time of the stripping head
● Wayback (opens blades slightly before pulling off)
● Stripping lengths (partial strip or full strip)
● Pull-off speed
● Pull-off with or without rotation of the stripping head
● Freely selectable stripping sequence
● Cable clamping force
Max.Cable Diameter
7 mm
Diameter Increments
0.01 mm
Max. Stripping Length
30 mm
Stripping Length Increments
0.01 mm
Max. Stripping Steps
9
Cycle Time
≥ 3.0sec(depending upon cable type and programming)
Production Rate
600～650Pcs./hour (depending upon cable type and programming)
Stripping Blades
2
Program Capacity
500 cables with 9 steps
Operating Model
Trigger/Footpedal
Power Supply
100-220 VAC ,+/- 10%, 50-60 Hz; 250VA
Air Pressure
6 bar/0.6Mpa/87psi
Noise
<75 dBA
Dimensions（LxWxH)
583x170x272 mm
Weight
13Kg
Important Notice
Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
