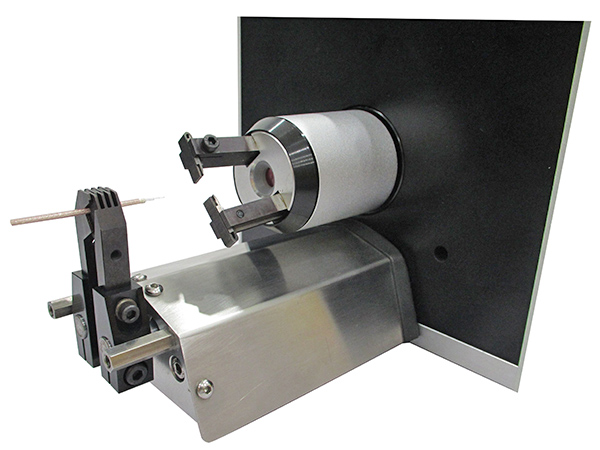

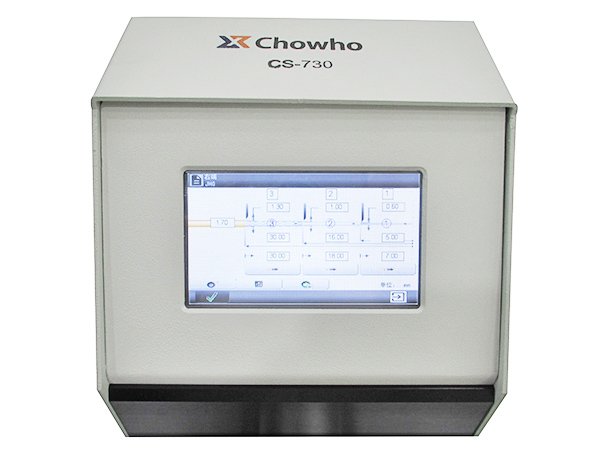

Production proven mechnics,combined with state-of-the art electronics and a 3D Graphical operation interface an easy to use platform which offers maximum efficency.The Coaxial Cable stripping machine CS-730 can easily process coaxial and traxial cables with a maximum outside diameter of 7mm(0.28").short cycle times and the ability to store up to 500 programs in memory ensure high profitability and quick return on investment.
Programmable settings for each step of each program
● Stripping position
● Stripping diameter
● Feed rate of the stripping blades
● Rotational speed of the stripping head
● Spindle direction of the stripping head
● Extra spin time of the stripping head
● Wayback (opens blades slightly before pulling off)
● Stripping lengths (partial strip or full strip)
● Pull-off speed
● Pull-off with or without rotation of the stripping head
● Freely selectable stripping sequence
● Cable clamping force
