● Incision diameter
● Incision feed rate
● Blade incision pause
● Blade way back
● Stripping length
● Pull off length
● Pull off speed
● Discard function/Trimming function
● Multiple step / Multiple strip/Processing order

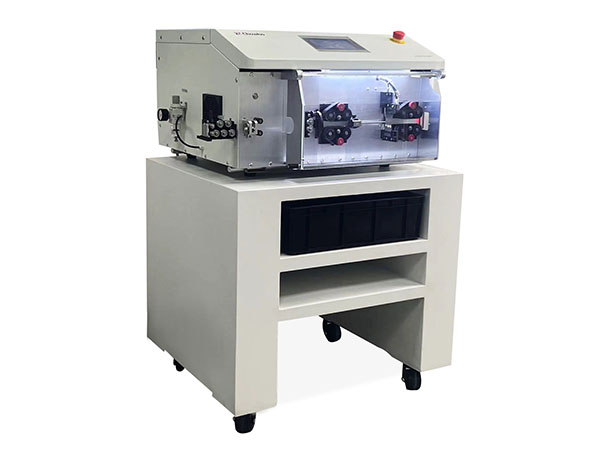

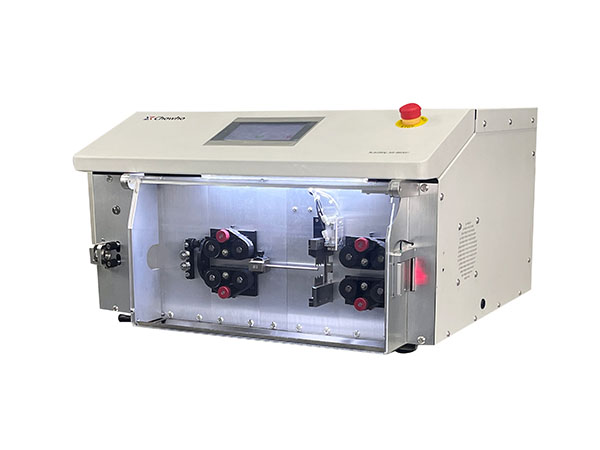

The AS-8600P Automatic cut & strip machine processes center conductors as small as 38 AWG and most wire and cable types up to 14mm(0.55")O.D. Due to the universal rotary stripping head and V-type cutting blades ,The AS-8600P is able to process the entire range of cable types and diameters without any blade changes. Once the values tor aparticular cable and job are stored in memory. they can beretrieved in seconds.
After pressing the" Start" key, As soon as all the required incisions are completed, the cable is transported to the cutter head where it is cut and the various layers are stripped from both cable ends. After the cable idone being processed,it is transported to the machine exitand released by means of transport belts.
Max.outer wire |
14 mm |
Max.cable cross section standard |
25mm² |
Min.diameter adjustment unit |
0 .01 mm |
Min.length adjustment unit |
0 .01 mm |
Max.wire or cable length |
999999.99 mm |
Cable length(Standard) |
195-999999.99 mm |
Cable length(Short mode) |
<195 mm |
Stripping length |
0.1-999999.99 mm |
Max.pull off length Left side -mm
Right side-mm |
195
999999.99 |
Max.stripping length Left side-mm
Right side-mm |
195
999999.99 |
Blade cartridge Blade set width |
2 x 16 mm (0.63”); 3 x 10.6 mm (0.42”) |
Blade types(Optional) |
Radius,die blades,double radius, V-blades flat blades,slitting blades, custom blades,etc. |
Memory capacity |
500 |
Display mode |
7Inch（Optional external display） |
Interfaces |

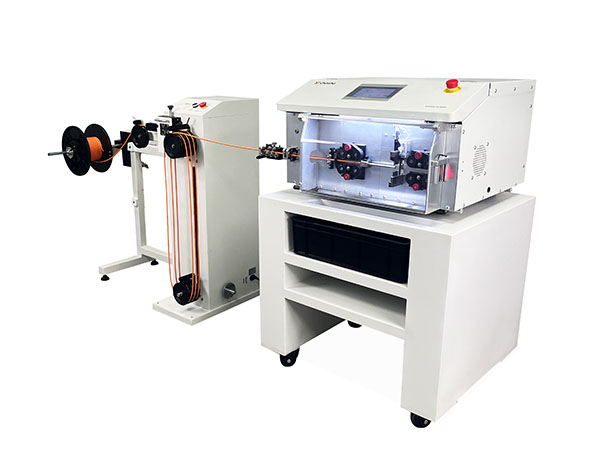

Pre-feeder,Inkjet printer,Wire stacker,Laser marker,Coiling machine |
Air pressure |
5-7Bar |
Power supply |
100-220 VAC ,+/- 10%, 50-60 Hz; 1800VA |
Dimension（LxWxH) |
1010x750x475mm |
Weight |
105Kg |
|
