●Simple assembly of the required control elements for easy handling
●The feeding direction can be adjusted forward and backward

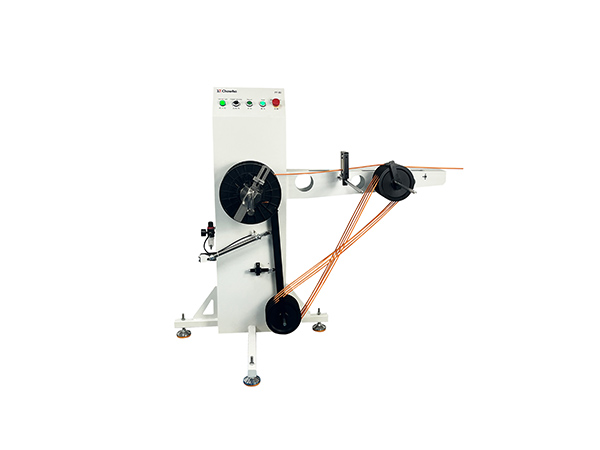

The Prefeeder 80 is an ideal feeding system for wire, small cables and tubing. The feeding process allows rapid accelera-tion of the spool while maintaining low forces on the material being fed. The dereeler is available in a 80 kg weight, based on maximum spool weight. The Prefeeder 80 is easy to integrate into a processing line. The feed adjustment is carried out through a dancer arm type accumulator. This system is optimally aligned to the capability of the Prefeeder 80.
The Prefeeder 80 is the perfect solution for feeding a wide spectrum of materials.
● With dancer arm accumulator
● Flexible wire, cable and tubing up to 12 mm in diameter
● ess flexible materials and larger cables in diameter
The Prefeeder 80 is the perfect accessory for feeding material to downstream processing machines. The Prefeeder 80 feeds material at variable speeds while minimizing stress to the material being fed. This allows the material to be processed with the highest possible precision by downstream processing units.
Easy handling when changing spools allows for short change-over time.
Spool Diameter
800 mm
Spool Width
600 mm
Spool Arbor Diameter
30 mm
Wire Spool Weight
80 kg
Max.outer cable diameter
12 mm
Dereeling Speed
Maximum 265 rpm
Wire Tension Force
Minimum 2.5N (depending on the wire)
Wire Storage Volume
Maximum 5.3m(when using 9 pulleys on dancer arm accumulator）
Power Supply
220 VAC ,+/- 10%, 50-60 Hz; 1500VA
Dimensions（LxWxH)
1535x1199x1428mm
Weight
140Kg
Important Note
Chowho company recommends that wire samples be submitted in case where
there is doubt as to the processing capabilities of a particular machine.
