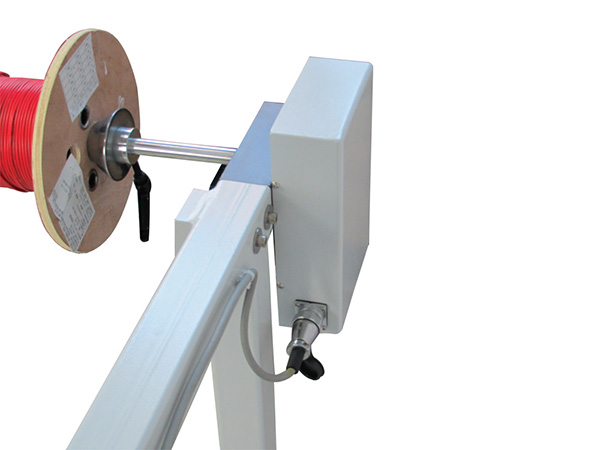

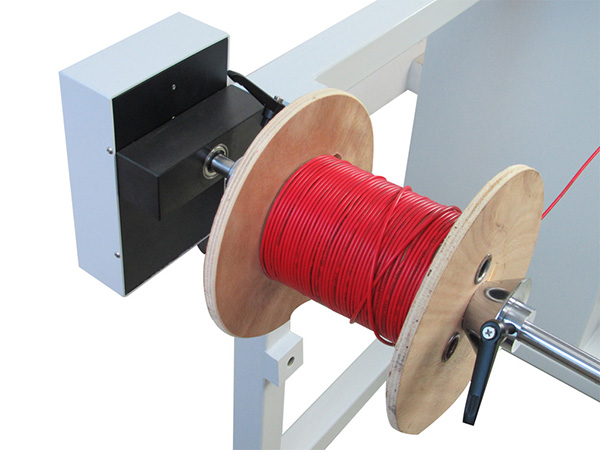

The Prefeeder PF-40 is a free-standing,electric-demand prefeeding machine designed to pull wire and cable from reels weighing up to 40Kg(140lbs.)and provide a constant tension to downstream wire processing machines.A moveable dancer pulley allows the Prefeeder PF-40 to easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines.

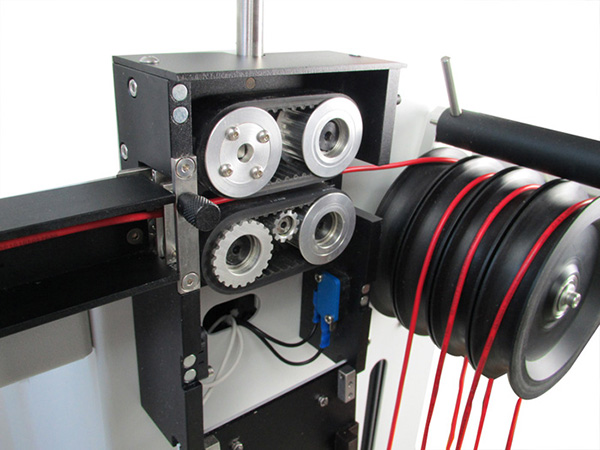

● Front-loading operating head for quick,tool-less cable changeovers
● Wide belts can pull cables up to 15mm(0.6”) in diameter
● Universally adjustable cable guide eliminates individual guides that can be misplaced
● Powerful drive motor for turning heavy reels
● High maximum speed of.2.5m/s(8.2ft/s)keeps up with most cut ,strip and terminate application
● Large accumulation capacity 3.8m(12.5ft)easily handles high speed/high acceleration applications
● Simple controls and ergonomic panel heigh for easy operation
