Dongguan Chowho Automation Technology Co.,Ltd. specializes in producing desktop wire feeder PF-20

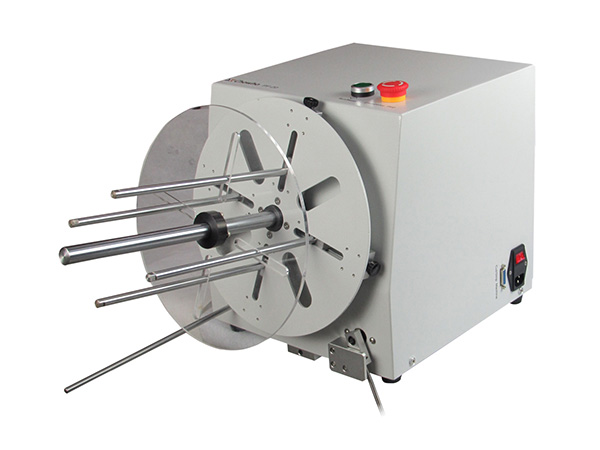

Prefeeding Machine PF-20

  • Detail

  • Application Range

  • Function

  • Technical Specifications

  • PDF Document

  • video

● Without Cable Reel
● Specifically designed for actively dereeling micro-coaxial cables
● Extremely suitable for dereeling thin cables
● Optimal cable transport due to adjustable dereeling motor
● Standard serial interface for connection to cutting- and stripping machines, forcing
the entire installation to an immediate stop in case of any malfunction within the cable feed.

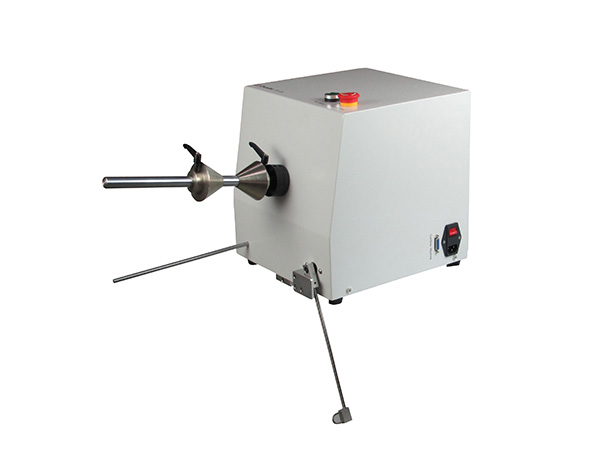

● Without cable reel device (option)

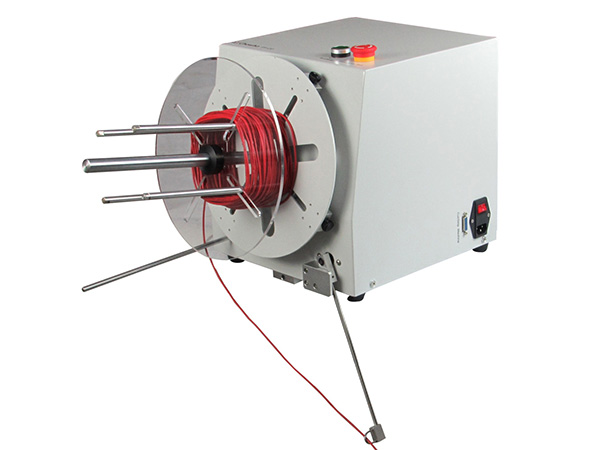

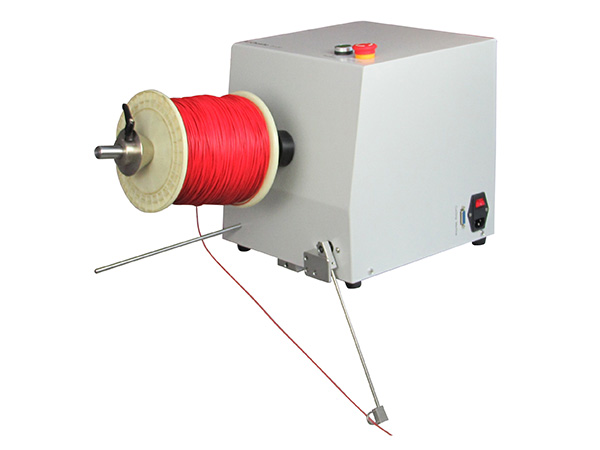

The Prefeeder PF-20 is a bench top dereeler ,electric-demand prefeeding machine designed to pull wire and cable from reels weighing up to 20Kg (44.4lbs.).The universal bench top dereeler Prefeeder PF-20 is designed for constant and tension free dereeling of thin cables. Due to an electroni-cal control system, which is activated with a pendulum arm, the feed rate automatically adjusts to the actual requirement of any downline machine (e.g. cutting- and stripping machines).
The Prefeeder PF-20 works as an active cable dereeler. The integrated dancer arm allows stress- and tension-free feeding of cable. Thanks to the closed loop concept the Prefeeder PF-20 can be integrated easily into a processing line as a stand-alone system.

Outer Cable Diameter

0.4 mm (AWG 40) – 3.5 mm

Outer Cable Reel Diameter

300~500mm(11.81”~19.69”)

Max.Cable Reel Width

300mm(11.81”)

Max.Reel Weight

20kg(44.41lbs.)

Shaft Length

320mm(12.60”)

Reel Center Diameter

20~80mm(0.78”-3.15”)

Speed Rate

0-750.r.p.m

Power Supply

110-220 VAC ,+/- 10%, 50-60 Hz; 170VA

Weight

29kg

Dimensions(LxWxH)

735x451x408mm

Important Notice

Chowho company recommends that wire samples be submitted in case where
there is doubt as to the processing capabilities of a particular machine.

​
