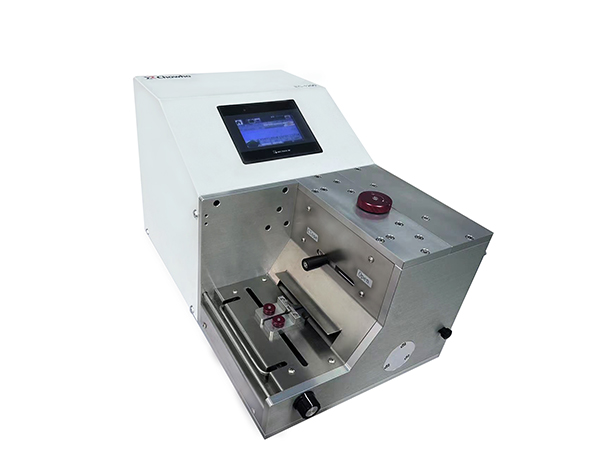

● Automatic Cutting Machine
● EC-1200
　The EC-1200 can cut a wide range of materials including round- and flat cable, wire and tubing with precise and repeatable results. The EC-1200 can be used as a stand alone machine or can be integrated into a processing line.The EC-1200 is electronically controlled and features several interfaces for peripheral components. The electrically driven rollers feed the material in increments of 0.1 mm (0.004“) to the universal cutting unit. The cutting unit is electrically driven and position controlled.

● Due to the heavy duty, precision cutting unit, even very thin materials (Kevlar strand, foil, etc.) can be cutclean and square .
● Feeding unit is fast, accurate and quiet
● Easy, menu guided operation and programming
● All-electric operation

Max. Outer Diameter 12 mm （12 mm（0.47“）
Max. Wire Size Stranded Wire 16 mm² (6 AWG) / Solid Wire 6 mm² (10 AWG)
Max. Cable Width 100 mm（3.94”）
Max. Feed Rate 1.6 m/s（5.28 ft/s）
Pulling Force 100 N（22 lbf）
Length Increments 0.1 mm（0.004“）
Interfaces Standard: Prefeeder, Inkjet Coding, RS232, Foot Pedal
Optional: Post-feed-Interface (CC40), Inkjet-Interface
Options Air Jet kit, Carbide Blades, Quadruple Cable Guides, Special Cable Guides lguana TM Wire Processing software
Noise Level <70 db（A）
Power Supply 100-220 VAC ,+/- 10%, 50-60 Hz; 400VA
Dimensions(LXWXH) 498x350x298 mm
Net Weight 22Kg
Important Notic Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
