●Diagnostics features
●One progrmming for two sides processing

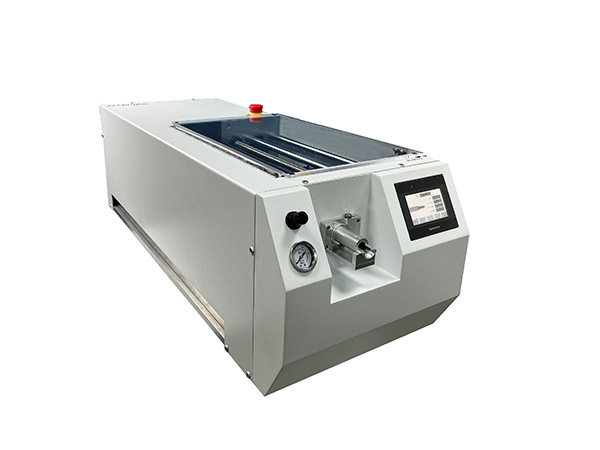

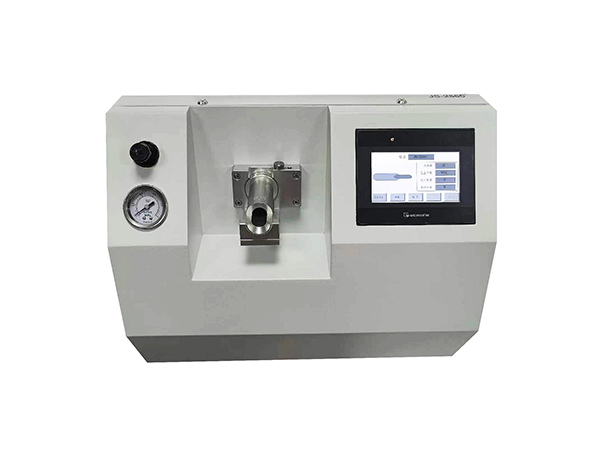

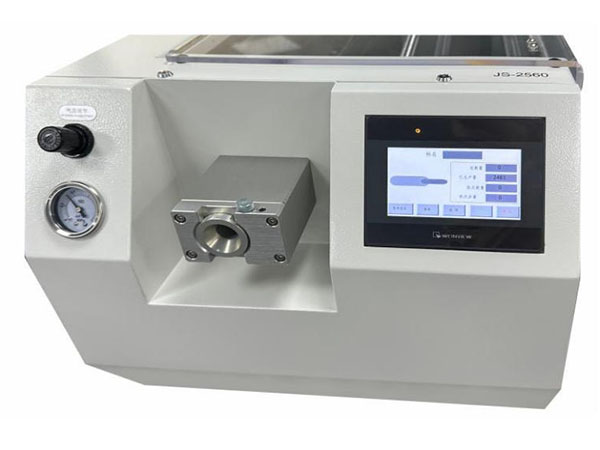

The JS-2560 jacket stripping machine can strip the jackets of round wires and cables up to 26 mm in diameter with a stripping length up to 600 mm. The solid, powerful machine processes thick, tough, soft and thin insulation materials. Simple operation, short cycle times and a universal blade design guarantee a good return on investment. The rotating 4-blade system centers the cable and creates precise incisions into the cable jacket. After the cable jacket has been cut, it is removed using a strong electric motor (full / partial or window strip can be selected). Pneumatically operated clamping jaws guarantee optimal cable retention during the stripping processing, then waste insulation material is automatically ejected.
● Handles thick cables and tough insulation materials
● Partial and window stripping capability
● Rotary incision head with four-blade technology
● High flexibility
● 4-blade system
● Way back (opens blades slightly before pulling off)
● Rotation cutting
● No required for change blades
● High repeatability
● Versatility

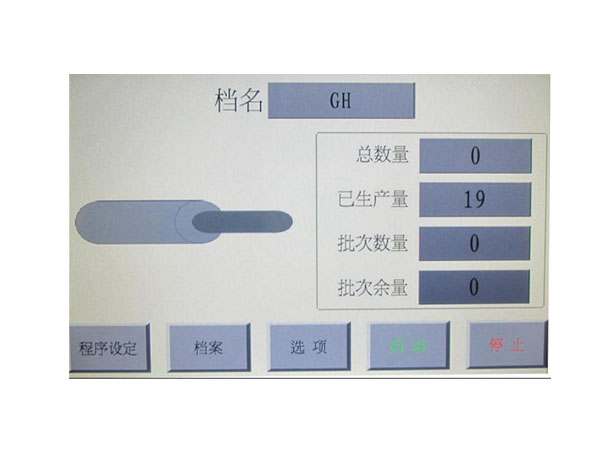

Display Interface Touch Screen (Chinese/English)
Cable Diameter Min. 2 mm (0.08”) (inner conductor ) ；Max. 26 mm (1.0”) (outer )
Accuracy of Diameter 0.1 mm-0.25 mm(0.004-0.01”)(dependent onΦ)
Stripping Length Adjustable from7-400 mm （0.27-15.74”）optional 400-600 mm （15.74-23.6”）
Pull-off Length Adjustable from 0-600 mm（0”-23.6”）
Accuracy of Length Adjustment +/-0.01mm
Jacket Thickness Up to a max. of 6 mm (0.234”)
Cycle Time At least 2.0 s (dependent on incision time and stripping)
Stripping Rate Infinitely adjustable up to max. 35cm/s (1.4”/s)
Max. Stripping Steps 9
Way back +/-0.01mm
Blades 4 universal blades(HSS)
Processable Insulation Materials PVC,PUR,rubber,Teflon® ,Tefzel®,Kapton,etc.
Program capacity 100 cables with 9 steps
Trigger Foot pedal or Touch screen
Options Cable guides, foot pedal
Air Pressure 0.5-0.7Mpa(5-7bar)
Power Supply 230/240 VAC,50/60Hz,800VA
Noise < 70 dBA
Dimension（LxWxH) 1172x428x408 mm
Weight 81.2 Kg
Important Notice Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
