Dongguan Chowho Automation Technology Co.,Ltd. specializes in producing terminal machine I-PEX-28

  • Detail

  • Application range

  • Function

  • Technical Parameters

  • PDF Document

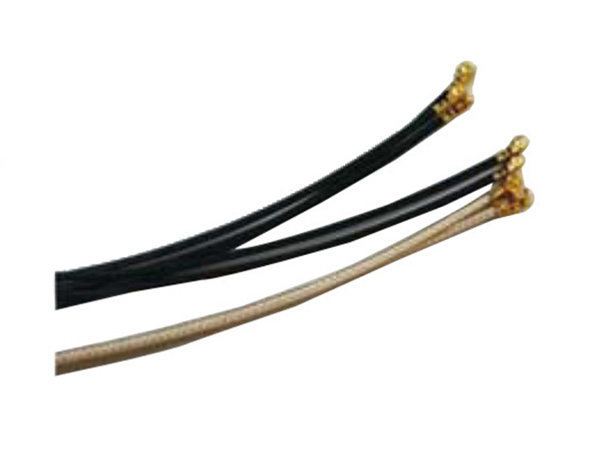

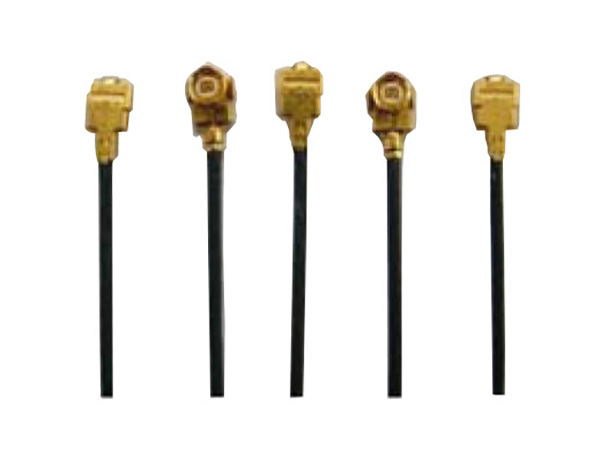

This machine is used for special machine of I-PEX series precision connector terminal Moulding&Crimping. Also be suitable for molding the other related connector terminal.
The machine according to different terminals corresponding to the coaxial cable outer diameter models, such as: 1.13mm, 1.32mm, 1.37mm, 1.78mm, 0.81mm each one. At the same time the machine is compact and portable, the PLC control operation is simple, can be converted in the manual / automatic
Applicable Coaxial Cable
Outer Diameter Range 		0.81mm、1.13mm、1.32mm、1.37mm、1.78mm
Production Efficiency

1400pcs/h

Pressure 0.5-0.7Mpa(5-7bar)
Power Requirements AC220-240V,50-60Hz 300VA
Noise <70dbA
Dimensions (L x W x H) 350mmx260mmx200mm
Weight 8Kg
Important Notice Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
