Dongguan Chowho Automation Technology Co.,Ltd. specializes in producing silent terminal crimping machine CH-2T CH-3T CH-4T

Mute Terminal Crimping Machine CH-2T CH-3T CH-4T

  • Detail

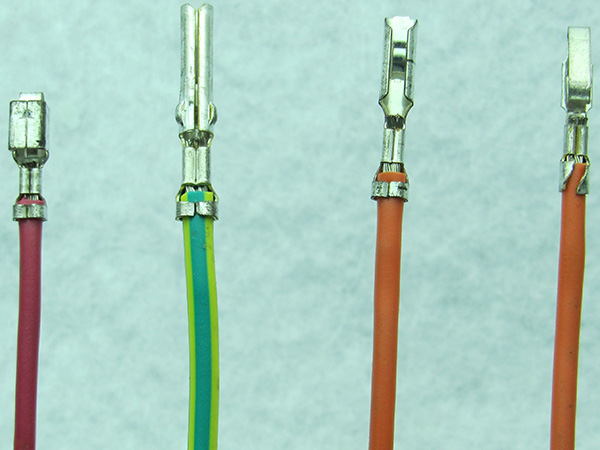

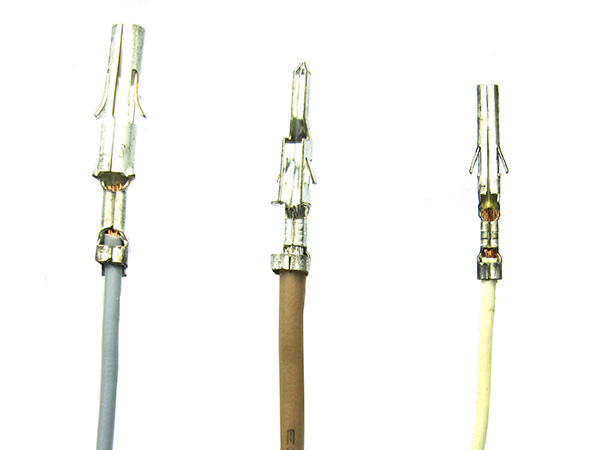

  • Application range

  • Technical Parameters

  • PDF Document

Properties
●The spindle rotates about 180 degrees (depending on the thickness of the terminals).
●Quick-change applicator base plate.
●Low noise,energy saving,high cost performance.
●Frequency converter driver system. Machine cycle guarantees an optimal force action.
●Welded steel, machined base and frame.
●The speed of crimping can be adjusted.
CH-2T/CH-3T/CH-4T Mute Terminal Crimping Machine adopts frequency converter speed driver; The repeatability precision of the crimping force is very stable,the all parameters set up is convenient and simple. Suitable for most industrial terminal crimping standards, and miniaturized crimping applicator on the left,back feeding terminals;Suitable for high-demand terminal crimping,cost-performance is the best also.
Model CH-2T 　　　 　　　　　　　　 CH-3T　 　　 　　　　　　　　 CH-4T
Crimping Force 2 tons　　　 　　 　　　　　　 3 tons 　　　　　 　 　　　       4 tons
Stroke 30~ 40mm Adjustable
Shut Height 119.7 ~ 136.8 mm
Height adjustment Range 15mm
Cycle Time 0.5 ～ 1s ; Adjust
Start Mode Foot Pedal
Noise Level ﹤70dB(A)
Power Supply AC220~240V,50~60Hz
Capacity 0.75KW　　 　　　 　　　　　　1.1 KW 　　　 　　　　　　　　1.5KW
Weight 95kg
Dimensions(L×W×H) 330*320*765 mm　　　　　330*320*765 mm 　　　　　340*330*750 mm
Important Note Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
