● Can process a variety of smaller cables
● Can do full and half stripping processing
● No need to change the blade when replacing the wire
● Lightweight machine mechanism, high flexibility when carrying or moving
● No power supply required
● Advanced machine trigger system with high durability and stability
● The machine is equipped with a safe protection system, which will not cause personnel injury when used
● Versatility
● High precision, high stability

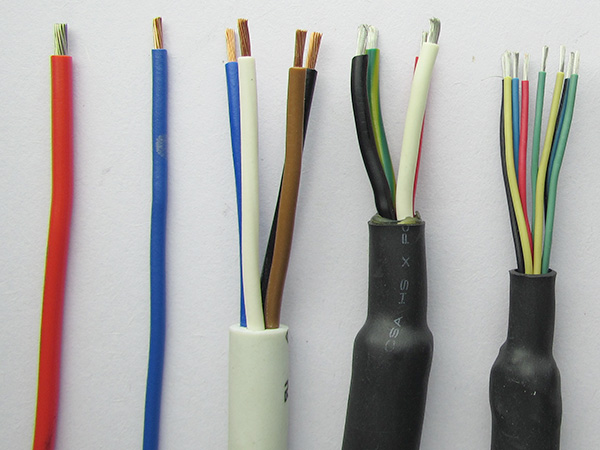

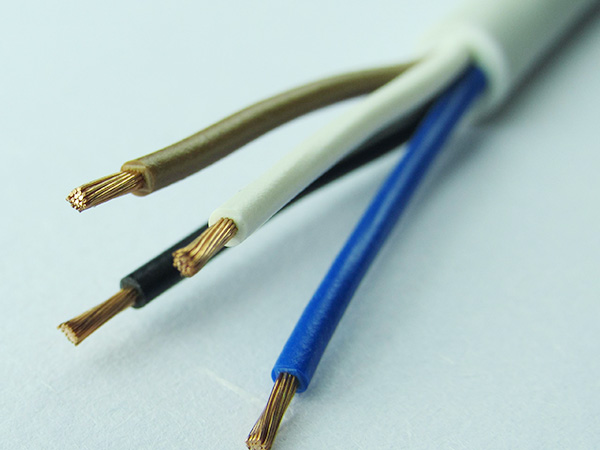

The PS-1520 is a pneumatic cable stripper that is the perfect solution for processing small single or multi-core cables. The maximum diameter of the processed cable can reach 3.2mm, and the maximum peeling length can reach 20mm. The main feature of the machine is that it can be used without power access, and the diameter, peeling length and peeling length of the cable can be easily and quickly adjusted during use. Secondly, the compact and lightweight design allows multiple working units to be integrated into one working station. The machine has the main characteristics of absolute accuracy, high stability, low cost, high efficiency and high return on investment.
● Maximum outer diameter of processed wire 3.2mm
● Wire cross section 0.03-2.08 mm² (32-14 AWG)
● Peeling length processing accuracy: 0.5mm
● Diameter setting accuracy 0.01mm
● Peeling length 20mm
| Cable diameter |
Min 0.03mm /32 AWG | Max 3.2mm /14 AWG |
| Diameter adjustment accuracy |
0.01mm |
| Peeling length |
1~20 mm |
| Peeling length |
Adjustment range 0~20mm |
| Length adjustment accuracy |
+ / - 0.01 mm |
| Processing time |
Minimum 0.3S |
| Blade |
2 universal V-shaped blades (high speed steel) |
| Types of insulation materials that can be processed |
PVC,PUR,rubber,Teflon® ,Tefzel® ,Kapton,etc. |
| Starting device |
Pneumatic trigger |
| Air pressure |
0.5 0.7 Mpa (5-7 bar) |
| Power supply |
No power supply |
| Noise |
Less than 75 dB |
| Volume (LXWXH) |
290x64x125mm |
| Weight |
2.0 Kg |
| Important Note |
If you have any questions about the machining performance of the machine, Chau Ho Company recommends that you provide samples of the corresponding cables to us for testing. |
|
