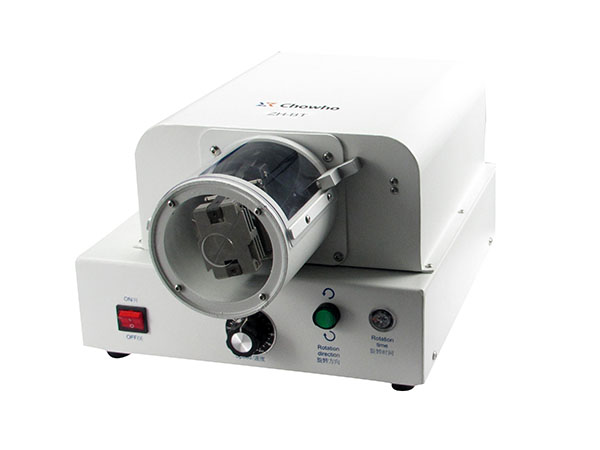

Braids Twisting Machine ZH-BT

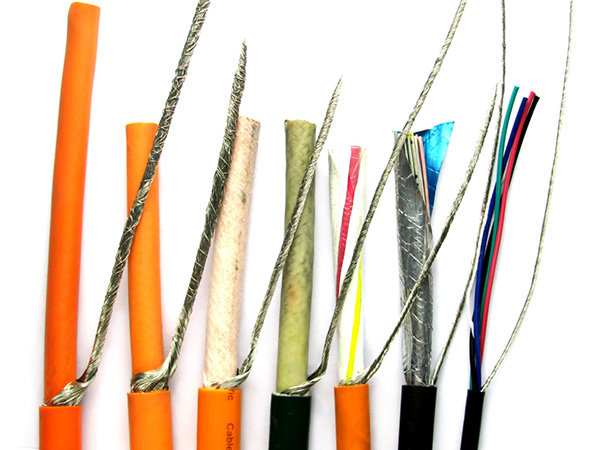

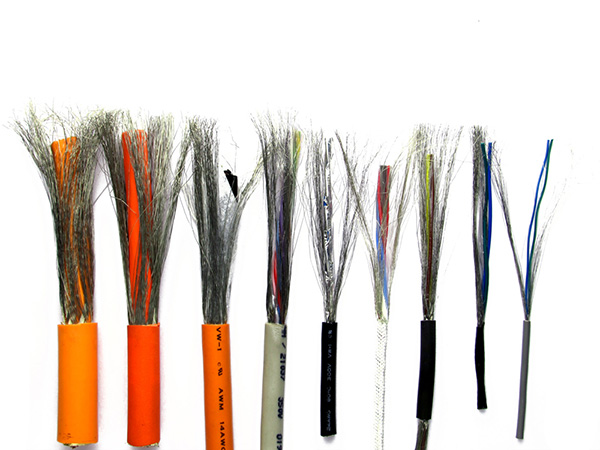

● Can process different types of wires braids.
● The rotating motion area has a safety cover.
● No need to adjust and setup when replacing the cable.
● The Mechanical structure is simple and features high flexibility during operation.
● The time replay can set the wire twisting time according to requirements.
● The twisting direction can be adjusted.
ZH-BT is a braids twisting machine, focuses on process different types of wires braid twisting technology; Its main can be for longer and larger square wire's shielding and braid to fast,uniform,balanced twisted, especially for the new energy automotive wire harness's braid to twist is particularly important.The operation is safe,simple and convenient.The rotating motion area has a safety cover,different of the traditional Twist machine,the rotary head unit of clamping jaw is outside the machine.
● Jaw open distance :0.5~20mm(This distance is the outer diameter after the braids is twisted.)
● Precise adjust range of twist length:5~350mm.
● Drive mode:Electric drive.
● Mechanical structure:Electrical structure.
● Twisting mode:Rotation twist ,rotation direction can be adjusted.
Jaw Open Distance
Minimum 0.5 mm, Maximum 20mm
Twist Speed
Adjust
Twist direction
Adjust
Twist Time
Adjust
Twist Length
From 5mm to 350mm can be adjusted accurately, Over 350mm can be set freely
Cycle Time
Approx.3 s (depending upon the cable braids and operator)
Output Capacity
More than 1000Pcs./hour
Twist Clamping
Two
Operating Mode
Foot pedal
Air Supply
0.5-0.7Mpa
Power Supply
110/220 VAC ,+/- 10%, 50-60 Hz; 350VA
Dimensions (LxWxH)
438x275x187 mm
Weight
13Kg
Important Notice
Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine
