Dongguan Chowho Automation Technology Co.,Ltd. specializes in producing woven mesh frequency line splitting machine BB-1525
  • Detail

  • Application Area/Concept

  • Function

  • Technical Specifications

  • PDF Document

  • video

● Demerge braids for various of smalll out diameter cables
● The machine is protected with a safety cover
● Only adjust the rotary speed and width when change wire
● The machine is very excellent in structure,can be improved as per customer's requirement

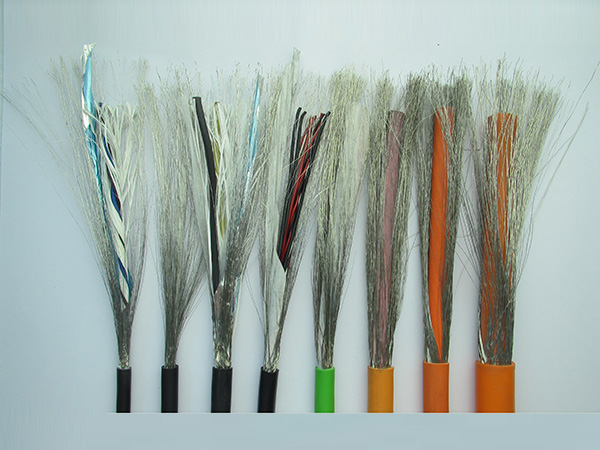

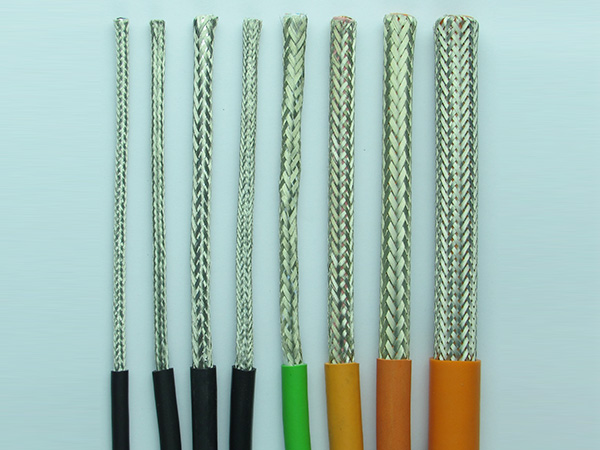

 BB-1525 is a braids & shields brushing machine, mainly used to demerge braids cable shields for multi-core wires, coaxial cables, etc.In the process of demerging braids & shields, the cables' own structure will be not be demaged and its electrical proferties will be not affected.This machine can demerge braids & shields's lenght up to 150mm,cables out diameter up to 25mm.It is suitable for demerge braids & shields of different sizes and densities. Especially, it's very important to demerge for the new energy automotiove wire harness's braids & shieldings.The machine operation is simple and safe,easy to produce.

● Mainly used to demerge braids cable shields
● Cables out diameter up to 25mm
● Simple adjust the rotary speed, be suitable for different cable types
● Simple adjust the belt brusher width, be suitable for different cable types
● Simple and quick for the interchangeable belt brushers
● Used for batch production
● Operation is simple and safe, easy to produce.

Cable Diameter Up to 25 mm
Braids Length Up to150 mm
Rotary Speed Adjust
Rotary Speed Range 0~1500r/m
Width Adjust Range 0~25mm
Production Rate 350~400Pcs/hour(depend on wire braids and operator)
Belt Brusher Two
Drive Mode Electric
Air Supply No Need
Power Supply AC220~240V,50~60Hz,3A
Noise < 75 dBA
Dimensions(LxWxH) 371x351x208mm
Weight 18 Kg
Important Notice Chowho company recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
